Many buyers assume that smaller slot openings always provide better filtration. In reality, an excessively fine slot size can reduce flow rate, increase clogging, and create unnecessary maintenance problems.
For industrial filtration systems, the best slot size is not the smallest one — it is the one that balances filtration efficiency, flow capacity, and service life.
In this guide, we will explain how to choose the right wedge wire screen slot size from 0.02 mm to 5 mm for different applications.
First, What Is a Wedge Wire Screen?
A wedge wire screen is a stainless steel filtration element made by welding profile wires onto support rods. Its continuous slot structure provides several advantages:
1. High mechanical strength
2. Accurate filtration performance
3. Excellent flow capacity
4. Strong anti-clogging ability
5. Long service life

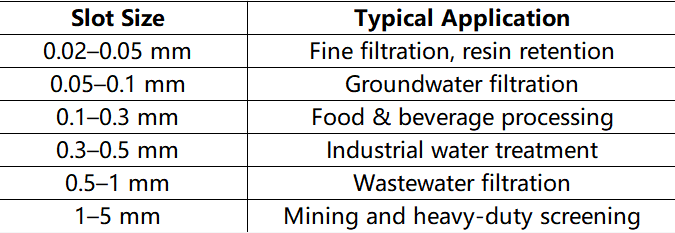

Common Wedge Wire Slot Size Range
Different applications require different slot openings.
The most common wedge wire slot sizes range from 0.02 mm to 5 mm
Choosing the correct range depends on particle size, flow rate, and operating conditions
Common Mistake: Smaller Slots Are Not Always Better
One of the most common misunderstandings in industrial filtration is choosing the finest possible slot size.
While smaller slots can capture finer particles, they may also cause several problems:
Faster clogging
Lower flow rate
Higher pressure drop
Increased cleaning frequency
Higher operating costs
In many systems, using an unnecessarily fine slot opening actually reduces overall efficiency
How to Choose the Right Slot Size
Before selecting a wedge wire screen, several factors should be considered.
1. Particle Size
The slot opening should generally be slightly smaller than the particles you want to retain.
2. Flow Rate Requirements
High-flow systems may require larger slot openings to reduce pressure loss.
3. Fluid Characteristics
Viscous liquids or fluids containing fibrous materials are more likely to block fine slots.
4. Cleaning Method
If the system uses backwashing or automatic cleaning, different slot sizes may be suitable.
5. Operating Environment
Corrosive environments may require different stainless steel materials such as SS304 or SS316L.
Custom Stainless Steel Wedge Wire Screens
At XinYue, we manufacture custom stainless steel wedge wire screens and filter housings for industrial filtration applications.
We support:
Slot sizes from 0.02 mm to 5 mm
Custom dimensions SS304 / SS316L materials
OEM manufacturing
Small quantity sample orders
Our wedge wire products are widely used in water treatment, industrial filtration, and heavy-duty separation systems.
If you are looking for custom stainless steel wedge wire screens or filter housings, XinYue can provide tailored solutions for your industrial applications.
