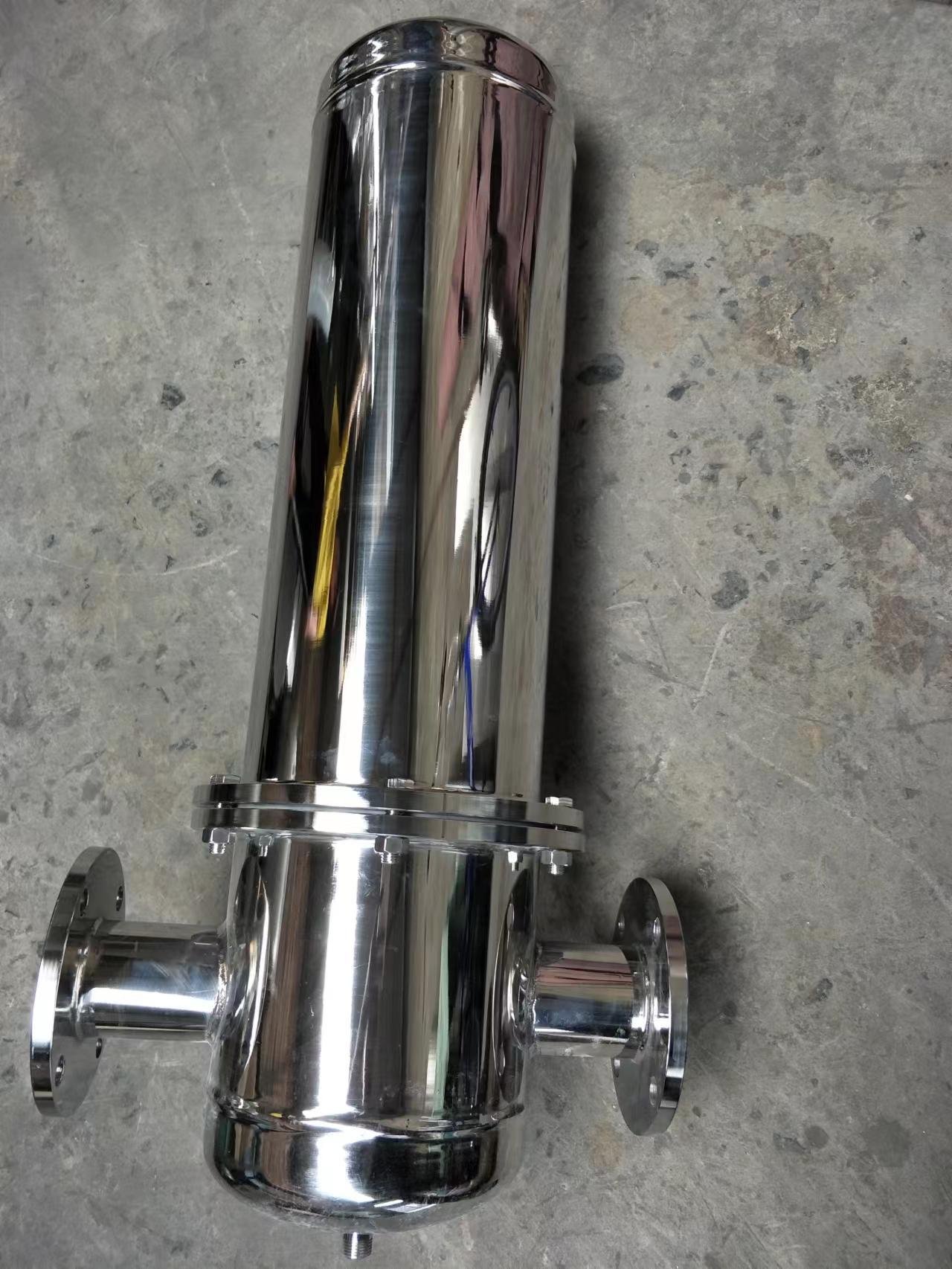

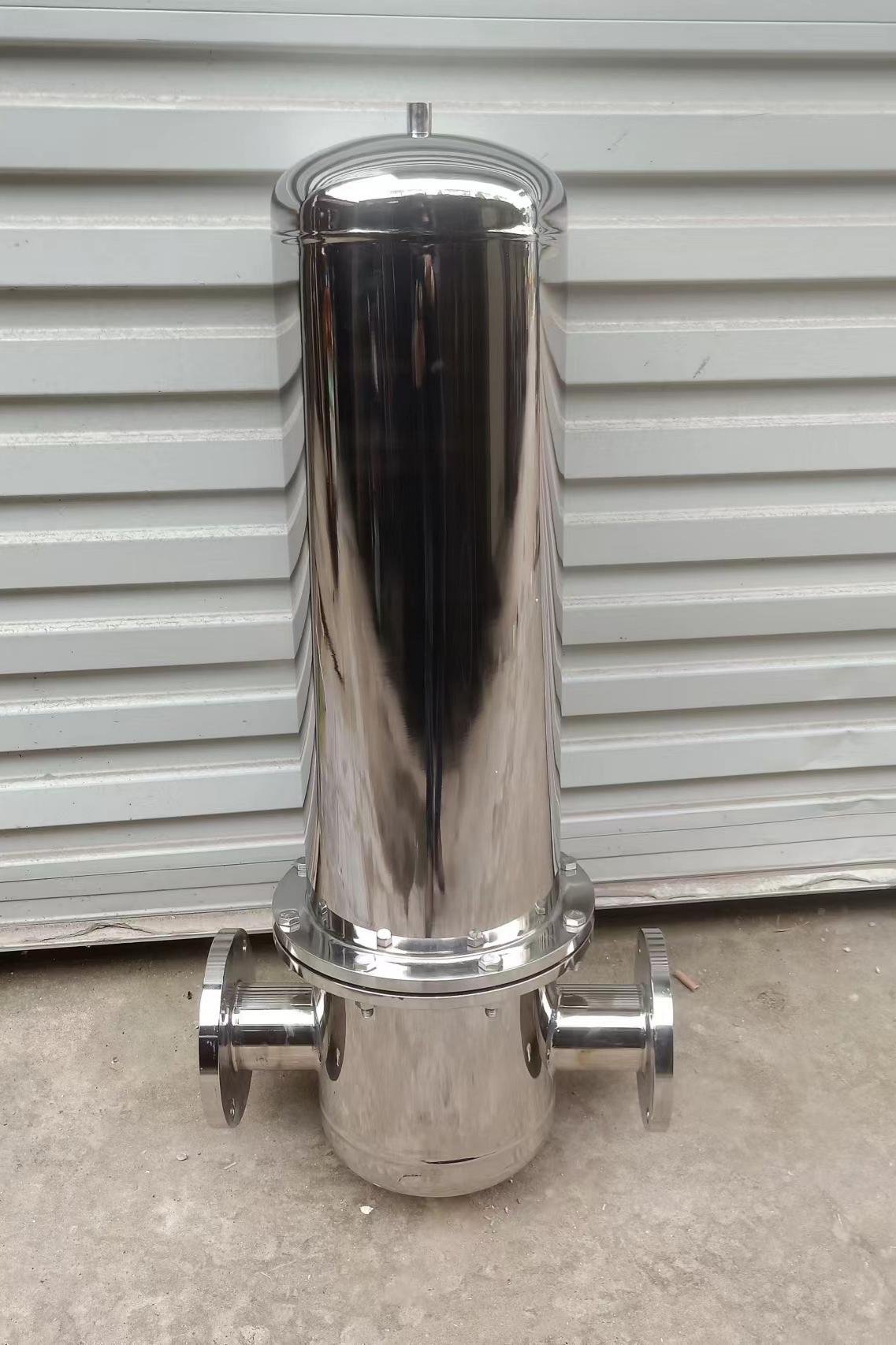

Material: Stainless Steel 304 / 316L
Surface Finish: Inner & Outer Mirror Polished
Connection: Thread( Customized)
Port Size: DN15(1/2″)~DN200(8″)
Max Working Pressure: 1.6MPa
Filter Element: PP/Titanium Rod
Element Length: 5″/10″/20″/30″/40″
Seal Gasket: Viton/FKM
Features
- Full stainless steel construction, high temp & corrosion resistant for saturated steam
- Sintered metal cartridge reusable, ultrasonic cleanable & backwash regenerable, long service life
- Low pressure drop design, high steam flow rate, reduce system energy consumption
- Dead-leg free sanitary design, comply with FDA for food/pharma steam application
- 3 connection options to match global pipeline standards: Thread / Clamp / Flange
Application
- Pharmacy: Pure steam SIP sterilization for fermenter, filling machine, WFI storage tank, lyophilizer; comply with GMP sterile requirement, 0.22μm sterile filtration.
- Brewery & Beverage: CIP steam filtration for saccharification tank & fermenter, UHT sterilizer pre-filter for juice & dairy production.
- Cosmetics: Sterile steam for cosmetic emulsifying pot & purified water heating system.
- General Industry: Reactor heating steam, autoclave steam for hospital, vulcanizer & heat exchanger protection in chemical & plastic factory.
FAQ
Q1: What’s the standard filter cartridge inside the housing?

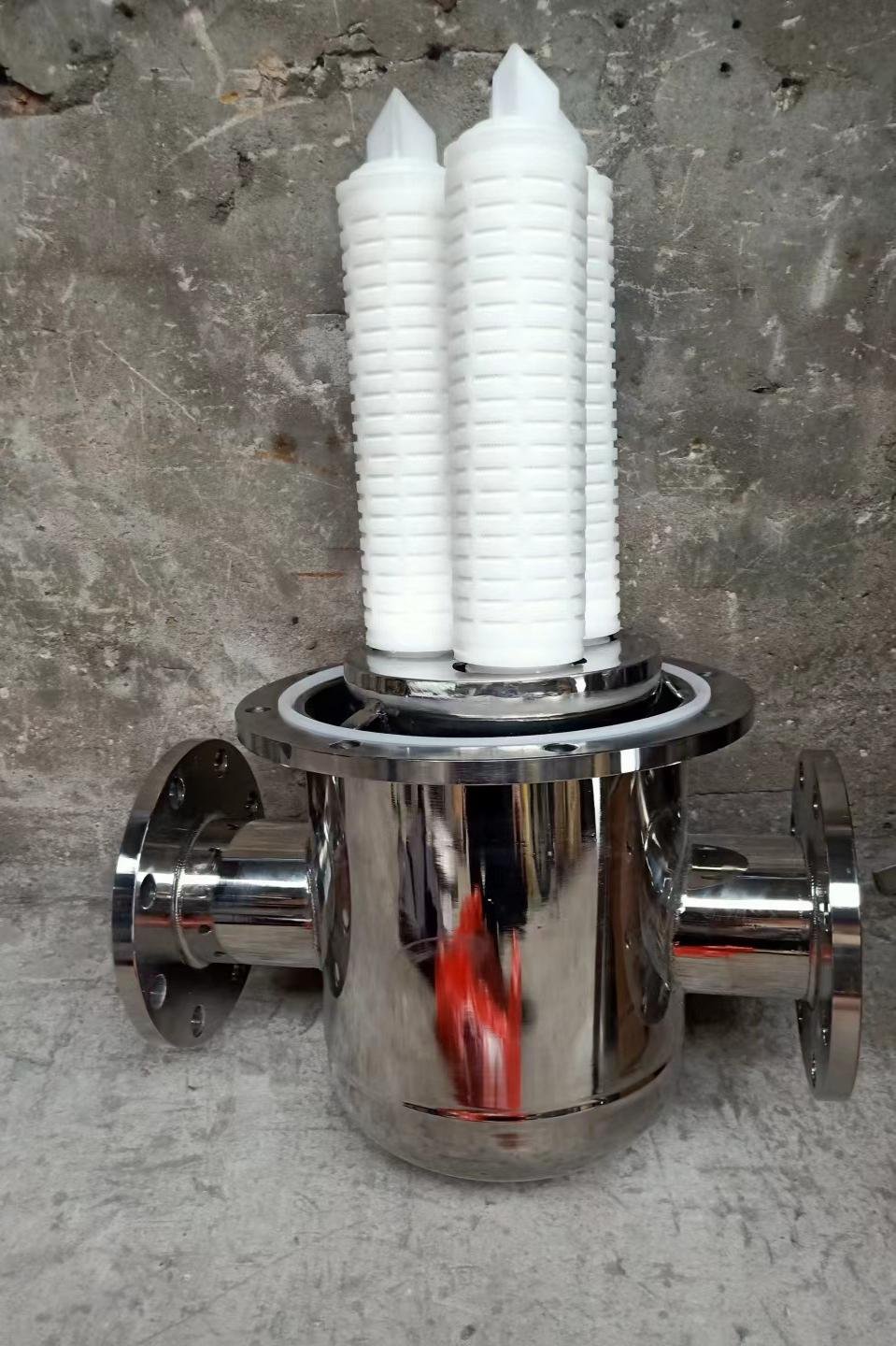

A: Standard is PP pleated membrane cartridge, common micron: 0.22μm(sterile grade for pure steam), 0.45μm,1μm,5μm. Stainless steel sintered metal cartridge is optional for high-temperature industrial saturated steam.
Q2: Can the PP pleated cartridge withstand repeated steam sterilization?
A: Yes, standard PP cartridge supports 135℃ in-line SIP steam sterilization, normally over 50 times repeated sterilization without damage, fits pharmaceutical & beverage GMP production.
Q3: What’s the difference between 0.22μm and 5μm steam filter?
A: 0.22μm is sterile filtration to remove bacteria & pyrogen for pure steam; 5μm is coarse filtration only to trap rust, welding slag, scale for common industrial boiler steam.
Q4: How often should I replace the filter cartridge?
A: Depends on steam cleanliness: Pure steam(pharma/food): replace every 3~6 months; common boiler industrial steam: replace every 1~3 months when pressure drop obviously rises.
Q5: Can I clean and reuse the filter cartridge?
A: PP pleated cartridge can be backwashed with purified water for secondary use; sintered stainless steel cartridge can be ultrasonic cleaned for long-term reuse.
Q6: Can you customize filter size, port size or housing material?

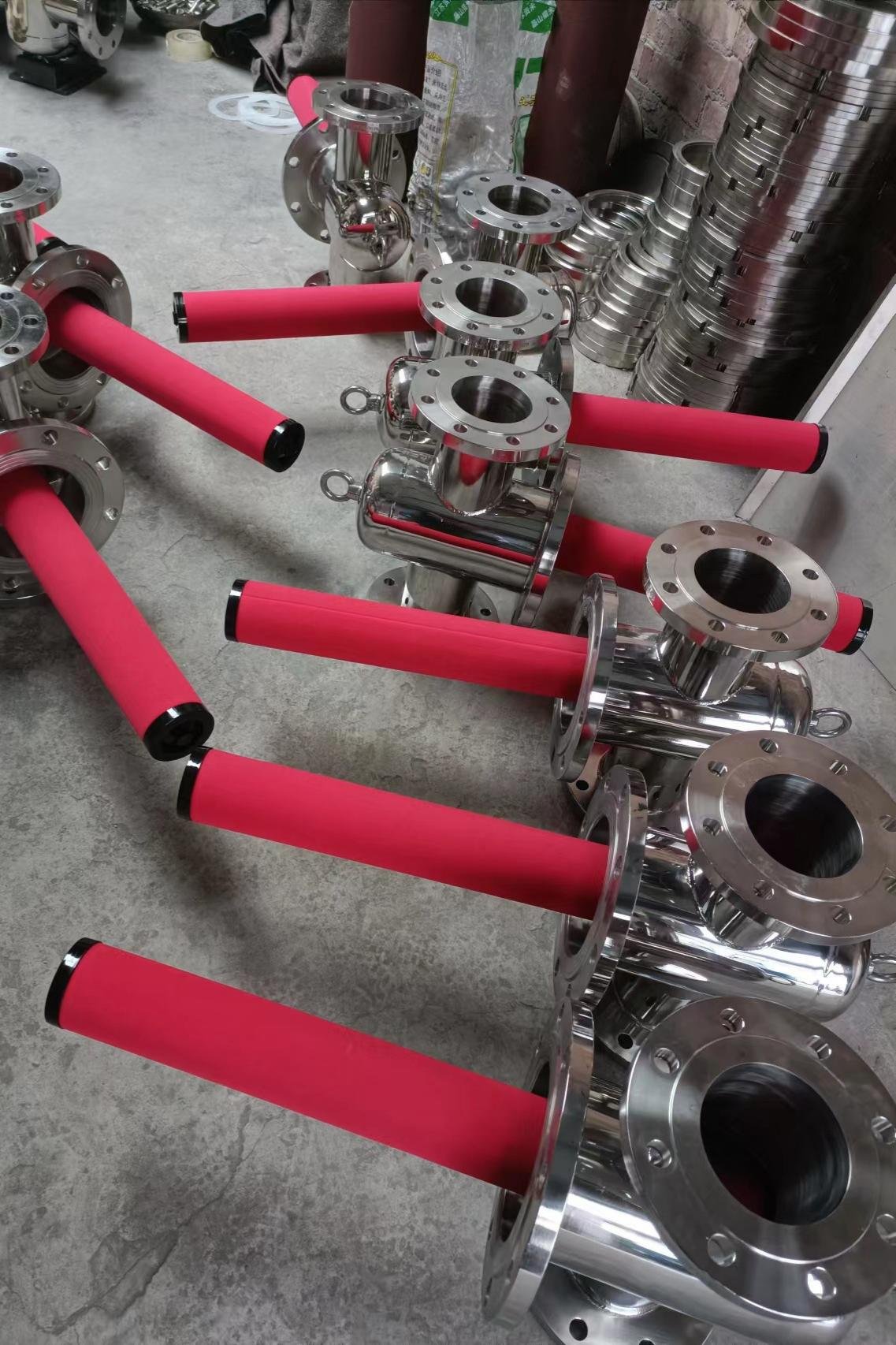

A: Yes, custom service available: SS304/SS316L/Hastelloy housing, custom port size DN15~DN200, 1/3/5 cores multi-cartridge housing as client’s flow requirement.
