| Item | Details |
|---|---|
| Material | Stainless Steel 304 / 316L |
| Connection | Tri-Clamp Quick Connection |
| Size Range | 2.5″–20″ (Customized Sizes Available) |
| Filter Element | Perforated Mesh or Wire Mesh |
| Mesh Size | 10–500 Mesh |
| Surface Treatment | Internal & External Polishing |
| OEM/ODM Service | Supported |
Features
- Sanitary design for hygienic applications
- Low pressure drop and high flow capacity
- Easy disassembly and cleaning
- Customizable mesh size and connection type
- Suitable for food, beverage, pharmaceutical and chemical processing

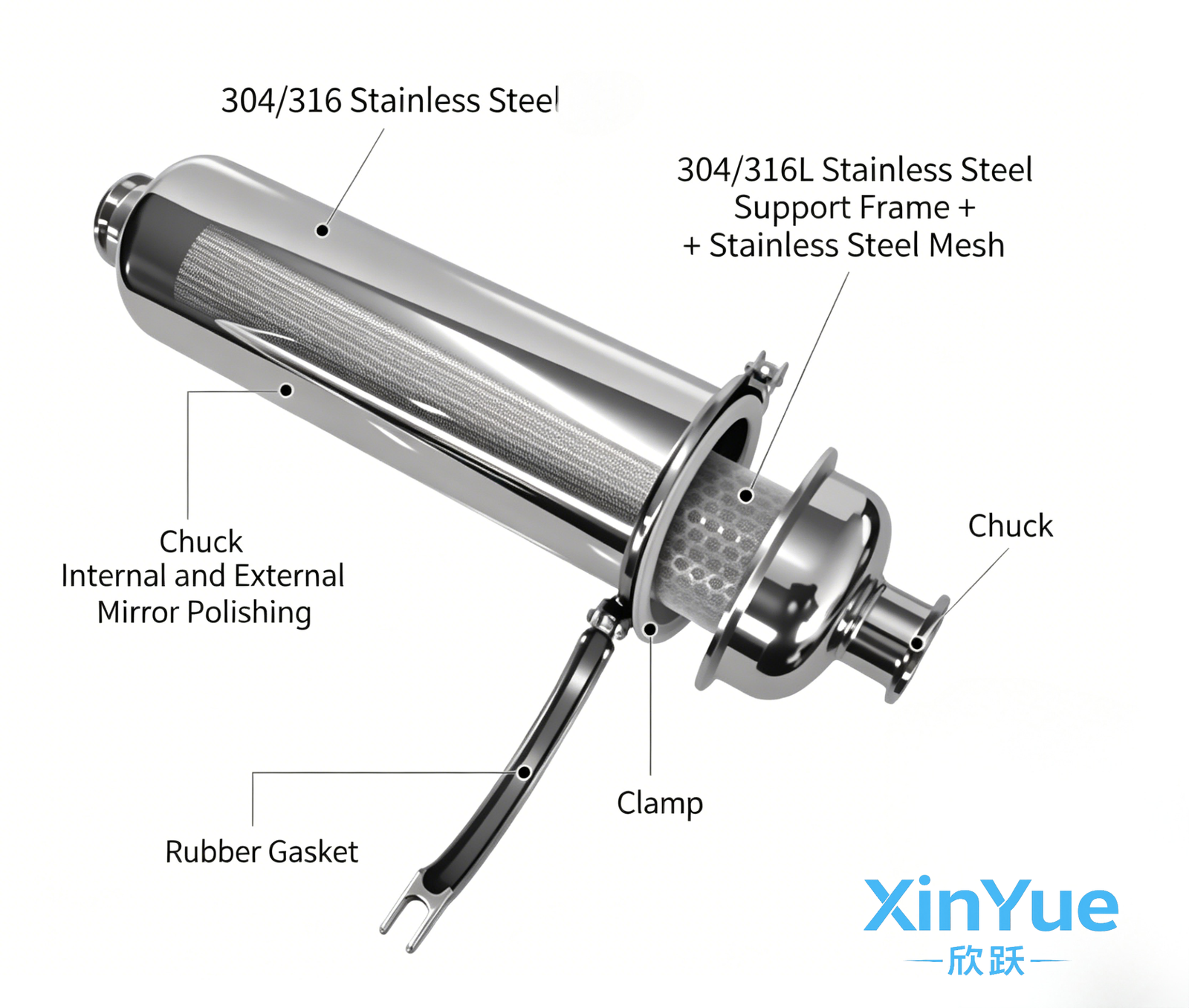

Main Components
- Filter Housing
- Filter Basket / Screen
- Sealing Gasket
- Clamp Connection
- Support Structure
FAQ
Q 1: What is the difference between wire mesh and perforated mesh?
Wire mesh offers finer filtration accuracy, while perforated mesh provides higher mechanical strength and is suitable for larger particle removal.
Q2: Can the filter element be removed and cleaned?
Yes. The filter basket can be easily removed for cleaning, inspection or replacement, reducing maintenance time and operating costs.
Q3: Can you customize the connection type?
Yes. Tri-clamp, threaded and flanged connections are available according to customer specifications.
Q4: What information is needed for quotation?
Please provide:
- Pipe size
- Flow rate
- Filtration requirement
- Operating pressure
Q5: Can the filter be used in food and beverage applications?
Yes. The sanitary stainless steel construction and polished surface make it suitable for food, beverage and pharmaceutical processing.
Q6: Do you support OEM and custom manufacturing?
Yes. We provide OEM, ODM and custom fabrication services based on customer drawings or technical requirements.
